README.md

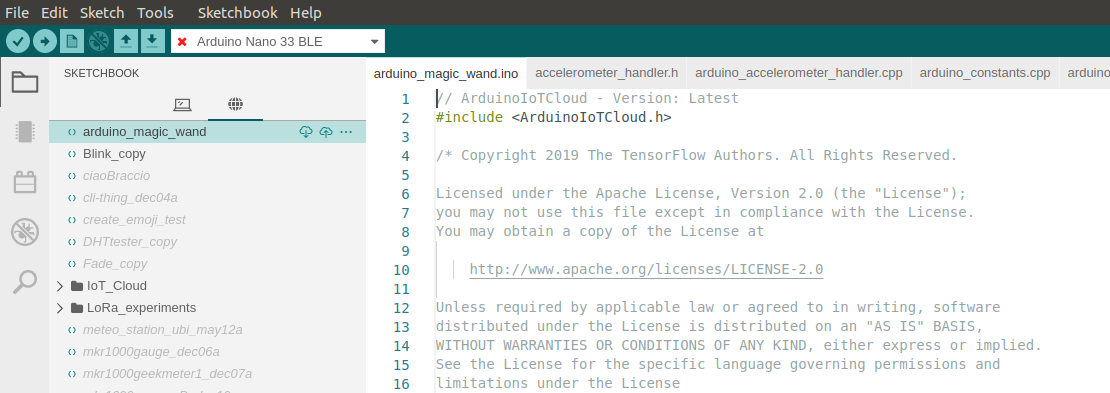

Remote Sketchbook

Arduino IDE provides a Remote Sketchbook feature that can be used to upload sketches to Arduino Cloud.

In order to use this feature, a user must be registered on Arduino Cloud and logged in. This feature is completely optional and can be disabled in the IDE via the "File > Advanced > Hide Remote Sketchbook" menu item.

Developer guide

A developer could use the content of this repo to create a customized version of this feature and implement a different remote storage as follows:

1. Changing remote connection parameters in the Preferences panel (be careful while editing the Preferences panel!)

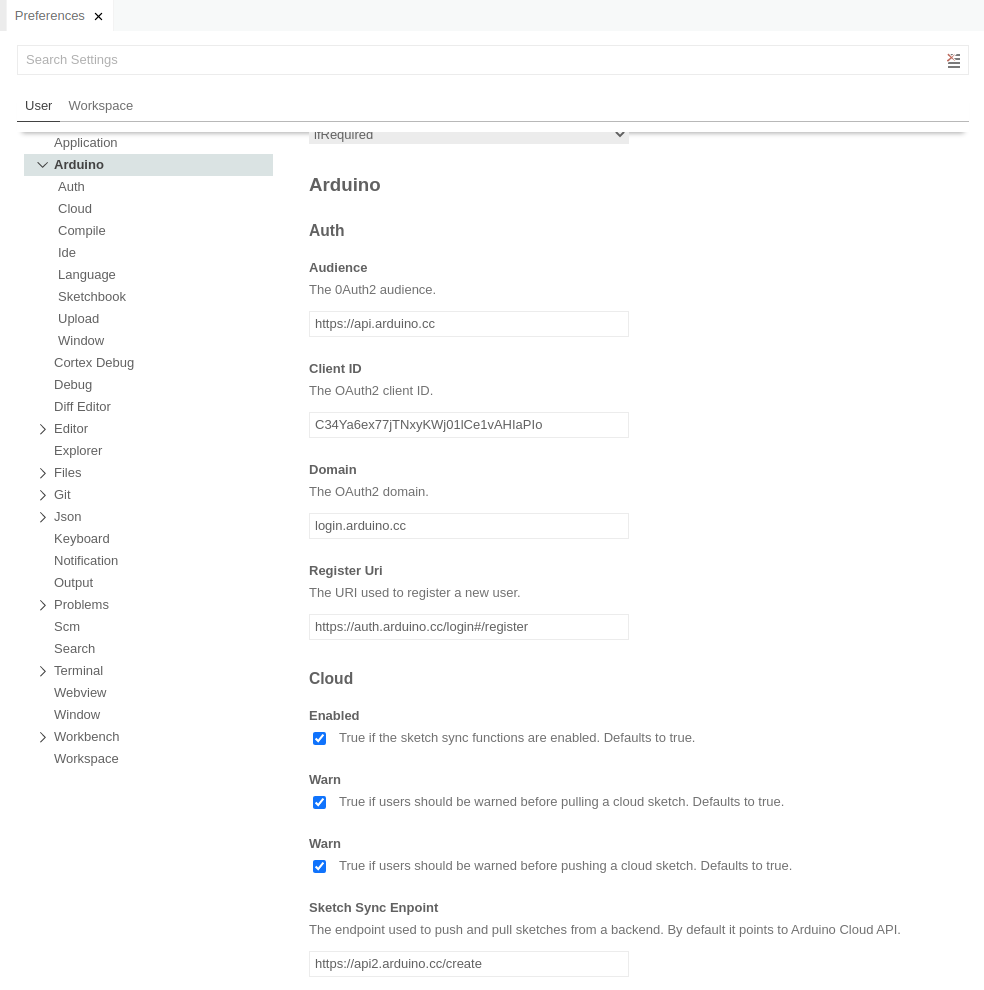

Here a screenshot of the Preferences panel

The settings under Arduino > Auth should be edited to match the OAuth2 configuration of your custom remote sketchbook storage
The setting under Arduino > Sketch Sync Endpoint should be edited to point to your custom remote sketchbook storage service

2. Implementing the Arduino Cloud Store APIs for your custom remote sketchbook storage

Following the API Reference below:

API Call	OpenAPI documentation
DELETE create/v2/files/d/$HOME/sketches_v2{posixPath}	https://api2.arduino.cc/create/docs#!/files95v2/files_v2_deletedir
DELETE create/v2/files/f/$HOME/sketches_v2{posixPath}	https://api2.arduino.cc/create/docs#!/files95v2/files_v2_deletefile
GET create/v2/files/d/$HOME/sketches_v2{posixPath}	https://api2.arduino.cc/create/docs#!/files95v2/files_v2_list
GET create/v2/files/f/$HOME/sketches_v2{posixPath}	https://api2.arduino.cc/create/docs#!/files95v2/files_v2_read
GET create/v2/sketches	https://api2.arduino.cc/create/docs#!/sketches95v2/sketches_v2_search
GET create/v2/sketches/byID/{id}	https://api2.arduino.cc/create/docs#!/sketches95v2/sketches_v2_byID
GET create/v2/sketches/byPath{path}	https://api2.arduino.cc/create/docs#!/sketches95v2/sketches_v2_byPath
POST create/v2/files/d/$HOME/sketches_v2{posixPath}	https://api2.arduino.cc/create/docs#!/files95v2/files_v2_mkdir
POST create/v2/files/f/$HOME/sketches_v2{posixPath}	https://api2.arduino.cc/create/docs#!/files95v2/files_v2_write
POST create/v2/sketches/{sketch.id}	https://api2.arduino.cc/create/docs#!/sketches95v2/sketches_v2_edit
POST create/v3/files/cp	https://api2.arduino.cc/create/docs#!/files95v3/files_v3_copy
POST create/v3/files/mv	https://api2.arduino.cc/create/docs#!/files95v3/files_v3_move
PUT create/v2/sketches	https://api2.arduino.cc/create/docs#!/sketches95v2/sketches_v2_create

Build the Arduino IDE with this extension

To build the Arduino IDE with this extension, run the following in a terminal. On Windows, use Git Bash.

./bootstrap.sh
