Styling Properties

You can adjust the appearance of objects by changing the foreground, background and/or border color of each object.

Object Types

Each object type is an ID that indicates which object type that line represents. Besides the common properties listed above, each object type can have specific properties.

Button

objid:10

A button can have 3 states. All the following parameters can be appended by a number to change the appearance of that state only:

• 0: Released
• 1: Pressed
• 2: Disabled

Or if the postfix index is ommited, then the default state 0 or Pressed is used.

A button can accept the attributes of the following groups:

• Background
• Border
• Outline
• Shadow
• Value

Attribute groups

Padding and Margin

Padding sets the space on the inner sides of the edges. It means "I don't want my children too close to my sides, so keep this space".Padding inner set the "gap" between the children. Margin sets the space on the outer side of the edges. It means "I want this space around me".

Objects use them to set spacing. See the documentation of the objects for the details.

Property	Type	Required	Default	Description
pad_top	int	Set the padding on the top
pad_bottom	int	Set the padding on the bottom
pad_left	int	Set the padding on the left
pad_right	int	Set the padding on the right
pad_inner	int	Set the padding inside the object between children
margin_top	int	Set the margin on the top
margin_bottom	int	Set the margin on the bottom
margin_left	int	Set the margin on the left
margin_right	int	Set the margin on the right

Background

Property	Type	Required	Default	Description
bg_opa	byte	no	""	The background opacity level
bg_color	color	no	true	The background color
bg_grad_color	color	no	0	The background gradient color
bg_grad_dir	[0..2]	no	expand	0 = None, 1 = Horizontal, 2 = Vertical
bg_grad_stop	byte	no	expand	Specifies where the gradient should stop. 0: at left/top most position, 255: at right/bottom most position. Default value: 255.
bg_main_stop	byte	no	expand	Specifies where should the gradient start. 0: at left/top most position, 255: at right/bottom most position. Default value: 0.

Border

The border is drawn on top of the background. It has radius rounding.

Property	Type	Required	Default	Description
border_color	color	Specifies the color of the border
border_opa	byte	Specifies opacity of the border
border_width	byte	Set the width of the border
border_side	byte	Specifies which sides of the border to draw. Can be 0=LV_BORDER_SIDE_NONE/1=LEFT/2=RIGHT/4=TOP/8=BOTTOM/15=FULL. A sum of these values is also possible to select specific sides.
border_post	bool	If true the border will be drawn after all children have been drawn.

Shadow

The shadow is a blurred area under the object.

Property	Type	Required	Default	Description
shadow_color	color	Specifies the color of the shadow
shadow_opa	byte	Specifies opacity of the shadow
shadow_width	int16	Set the width (blur size) of the outline
shadow_ofs_x	int16	Set the an X offset for the shadow
shadow_ofs_y	int16	Set the an Y offset for the shadow
shadow_spread	byte	make the shadow larger than the background in every direction by this value

Value

Value is an arbitrary text drawn to the background. It can be a lightweighted replacement of creating label objects.

Property	Type	Required	Default	Description
value_str	string	Text to display. Only the pointer is saved! (Don't use local variable with lv_style_set_value_str, instead use static, global or dynamically allocated data)
value_color	color	Color of the text
value_opa	byte	Opacity level of the text [0-255]
value_font	byte	The font ID
value_letter_space	int	Letter space of the text
value_line_space	int	Line space of the text
value_align	align	Alignment of the text. Can be LV_ALIGN_.... Default value: LV_ALIGN_CENTER.
value_ofs_x	int	X offset from the original position of the alignment
value_ofs_y	int	Y offset from the original position of the alignment

Text

Properties for textual object.

Property	Type	Required	Default	Description
text_color	color	Color of the text
text_opa	byte	Opacity level of the text [0-255]
text_font	byte	Font ID
text_letter_space	int	Letter space of the text
text_line_space	int	Line space of the text
text_decor	byte	Add text decoration. 0=None, 1=Underline, 2=Strikethrough, 3=Underline&Strikethrough
text_sel_color	color	Set background color of text selection

Line

n/a


n/a

Outline

n/a

Pattern

n/a

Transitions

n/a

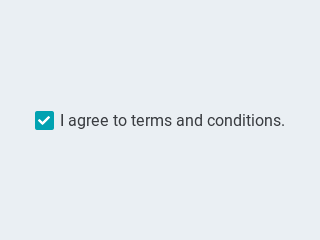

Checkbox

objid:11

{: .align-center}

Property	Value	Required	Default	Description
val	int16	no	0	The value: 1 for checked, 0 for unchecked
txt	string	no	"Checkbox"	The label of the checkbox

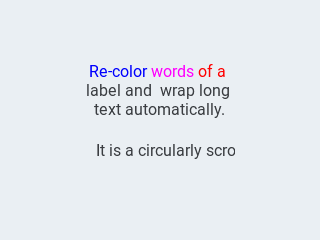

Text Label

objid:12

{: .align-center}

Property	Value	Required	Default	Description
txt	string	no	"Text"	The text of the label
mode	string	no	expand	The wrapping mode of long text labels

Possible wrapping modes are: expand, break, dots, scroll and loop

{"page":2,"id":1,"objid":12,"h":24,"w":120,"txt":"\ufe05 Icon Demo"}

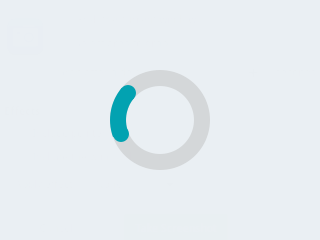

Spinner

objid:21

{: .align-center}

Property	Value	Required	Default	Description
speed	int16	no	1000	The time for 1 furn in ms
direction	int16	no	100	0 for clockwise, 1 for counter-clockwise
thickness	int16	no	dep. on theme	The width of the arcline

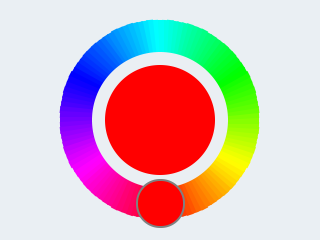

Colorpicker

objid:20

{: .align-center}

Property	Value	Required	Default	Description
val	uint16	no	0	The selected color in RBG565 format
color	hex string	no	0	The selected color in html format #rrggbb
rect	boolean	no	false	True if the color picker has a rectangular shape like a slider. False for a circular shape.

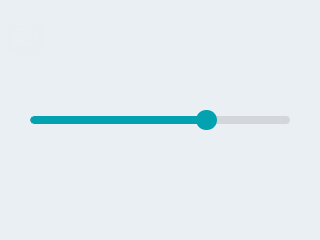

Slider

objid:30

{: .align-center}

Property	Value	Required	Default
min	int16	no	0
max	int16	no	100
val	int16	no	0

Double Slider

objid:30

Property	Value	Required	Default
min	int16	no	0
max	int16	no	100
val	int16	no	0

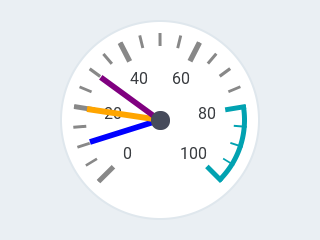

Gauge

objid:31

{: .align-center}

Property	Value	Required	Default
min	int16	no	0
max	int16	no	100
val	int16	no	0

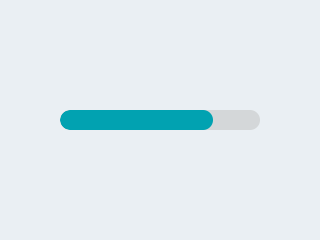

Progressbar

objid:32

{: .align-center}

Property	Value	Required	Default
min	int16	no	0
max	int16	no	100
val	int16	no	0

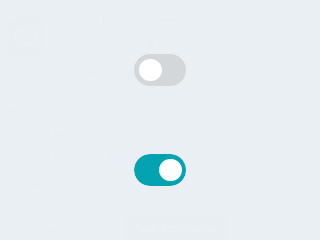

Switch

objid:40

{: .align-center}

Property	Value	Required	Default	Description
val	int16	no	0	The value: 1 for on, 0 for off

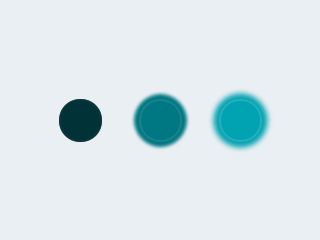

LED Indicator

objid:41

{: .align-center}

Property	Value	Required	Default	Description
val	byte	no	0	The brightness of the indicator 0-255

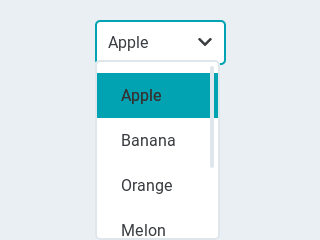

Dropdown List

objid:50

{: .align-center}

Property	Value	Required	Default	Description
options	string	no	""	The items separated by \n
val	int16	no	0	The number of the selected item
txt	string	no	""	Read-only The text of the selected item

To change the currently selected item, use the val attribute. To change the items in the list, use the options attribute.

When the item is changed both val and txt of the newly selected item are send out.

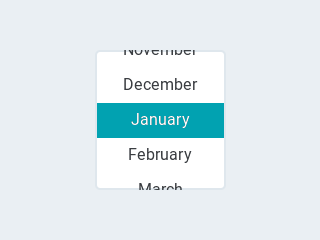

Roller

objid:51

{: .align-center}

Property	Value	Required	Default	Description
options	string	no	""	The items separated by \n
val	int16	no	0	The number of the selected item
txt	string	no	""	Read-only The text of the selected item
rows	int8	no	3	The number ow rows that are visible

Note: A roller does not use the h attribute to set its height, but uses the rows to set the visible number of rows instead.

To change the currently selected item, use the val attribute. To change the items in the list, use the options attribute.

When the item is changed both val and txt of the newly selected item are send out.

Example file

This is a real-world demo pages.jsonl file:

{"comment":"---------- Page 0 ----------"}
{"objid":10,"id":1,"page":0,"x":10,"y":45,"w":220,"h":55,"toggle":"TRUE","txt":"Toggle Me \uf0a6"}
{"objid":11,"id":2,"page":0,"x":10,"y":100,"w":220,"h":55,"txt":"Checkbox 1"}
{"objid":12,"id":3,"page":0,"x":10,"y":10,"w":220,"h":30,"txt":"Text Label 1","align":1,"padh":50}
{"objid":40,"id":4,"page":0,"x":70,"y":205,"w":100,"h":55}
{"objid":41,"id":5,"page":0,"x":10,"y":205,"w":55,"h":55}
{"objid":50,"id":6,"page":0,"x":10,"y":150,"w":150,"txt":"\uf007 Option 1\n\uf007 Option 2\n\uf007 Option 3"}
{"objid":21,"id":7,"page":0,"x":165,"y":140,"w":70,"h":70}
{"comment":"---------- Page 1 ----------"}
{"objid":30,"id":1,"page":1,"x":10,"y":170,"w":200,"h":50}
{"objid":31,"id":3,"page":1,"x":13,"y":10,"w":100,"h":100}
{"objid":32,"id":4,"page":1,"x":10,"y":110,"w":200,"h":50}
{"objid":33,"id":5,"page":1,"x":127,"y":10,"w":100,"h":100}
{"objid":12,"id":10,"page":1,"x":0,"y":0,"w":70,"h":50,"parentid":5,"txt":"\uf00c OK"}
{"comment":"---------- Page 2 ----------"}
{"objid":20,"id":1,"page":2,"x":20,"y":0,"w":200,"h":200}
{"objid":20,"id":2,"page":2,"x":20,"y":210,"w":200,"h":50,"rect":"TRUE"}
{"comment":"---------- Page 3 ----------"}
{"objid":50,"id":1,"page":3,"x":10,"y":10,"w":220,"txt":"Spring\nSummer\nAutumn\nWinter"}
{"objid":51,"id":2,"page":3,"x":40,"y":50,"w":160,"txt":"2018\n2019\n2020\n2021\n2022\n2023\n2024","rows":4}
{"comment":"---------- Page 254 ----------"}
{"objid":10,"id":1,"page":254,"x":0,"y":270,"w":75,"h":50,"opacity":100,"txt":"\uF053 Prev"}
{"objid":10,"id":2,"page":254,"x":75,"y":270,"w":90,"h":50,"opacity":100,"txt":"\uF015 Home"}
{"objid":10,"id":3,"page":254,"x":165,"y":270,"w":75,"h":50,"opacity":100,"txt":"Next \uF054"}
